form:reset-buttonサンプル1
form:reset-buttonサンプル1
(『<biz-Stream_home>/sample/xml/form_reset-button/form_reset-buttonSample1.xml
』)
<?xml version="1.0" encoding="UTF-8"?>
<!-- XML file created by biz-Stream Designer -->
<!-- biz-Stream Copyright BrainSellers.com Corp. -->
<Layout Name="formresetbuttonSample1" Width="120" Height="90" X="10" Y="10" xmlns:fo="http://www.w3.org/1999/XSL/Format" xmlns:bs="http://www.brainsellers.com/schema" xmlns:svg="http://www.brainsellers.com/schema" xmlns:form="http://www.brainsellers.com/schema" xmlns:pdf="http://www.brainsellers.com/schema" version="5.0.0">
<Square Width="75" Height="48" X="8" Y="11" LineColor="14,0,176" LineStyle="Solid"/>
<!-- formtext -->
<Label Width="25" Height="5" Y="48" Horizon="right" Vertical="center" Vector="horizon" Font="MSGothic" FontStyle="BOLD" Narrow="horizon">ID</Label>
<form:text name="id" x="28" y="48" width="50" height="5" font-family="MSGothic" border-color="0,0,0" border-width="normal" border-style="solid" text-align="left" hidden="false" print="true" read-only="false" scroll="true" multi-line="false"/>
<!-- formpassword -->
<Label Width="25" Height="5" Y="38" Horizon="right" Vertical="center" Vector="horizon" Font="MSGothic" FontStyle="BOLD" Narrow="horizon">パスワード</Label>
<form:password name="password" x="28" y="38" width="50" height="5" font-family="MSGothic" border-color="0,0,0" border-width="normal" border-style="solid" text-align="left" hidden="false" print="true" read-only="false"/>
<!-- サブミットボタン -->
<form:submit-button name="submit1" x="28" y="25" width="50" height="8" font-family="MSGothic" border-width="normal" border-style="solid" background-color="204,204,204" hidden="false" print="true" read-only="false" method="POST" format="XML" uri="mailto:technical@brainsellers.com">メールでデータを送信</form:submit-button>
<!-- リセットボタン -->
<form:reset-button name="reset1" x="28" y="15" width="50" height="8" font-family="MSGothic" border-width="normal" border-style="solid" background-color="230,230,250" hidden="false" print="true" read-only="false">データリセット</form:reset-button>
</Layout>

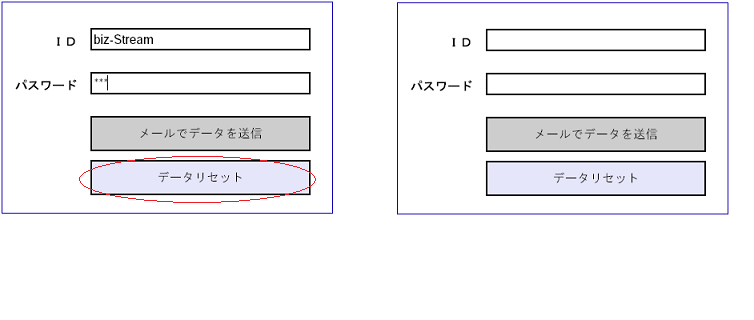

生成されるPDF(『<biz-Stream_home>/sample/xml/form_reset-button/form_reset-buttonSample1.pdf
』)
